| الاسم التجاري: | ZI QIANG |
| رقم الطراز: | ZQ 80 |
| الـ MOQ: | 1 |
| السعر: | 60000 USD |
| شروط الدفع: | ر/ر |
| Attribute | Value |
|---|---|
| Trademark | DAWSON |
| Control System | PLC |
| Motor Power | 11/15 Kw |
| Compressed Air Capacity | 0.7M³/min |
| Warranty | 1 year |
| Automation Grade | Automatic |
| Plastic Materials | PP, HDPE, PE/PP |
| Plastic Processed | PP,PE |
| Total Power | 20KW |
| Injection Stroke | 200 Mm |
| Operation Mode | Automatic |
| Frequency | 50/60Hz |
| Station | 50mm |
| Electronic Rulers | Gefran |
| Injection Clamping Force | 1100 KN |
| Item | Unit | ZQ80 |
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 55 |
| Screw L/D | % | 22:1 |
| Injection weight | g | 314 |
| Heating power | KW | 20 |
| Number of barrel zone | 5+N | |
| Injection stroke | mm | 160 |
| Clamping System | ||
| Clamping force of injection | KN | 800 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 120 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |

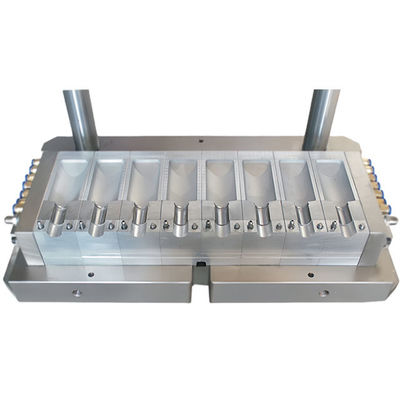

| Mould | ||
| Max.Platen size(L*W) | mm | 800*400 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 230 |
| Hydraulic system | ||
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 22+22 |
| Dry cycle | S | 4 |
| Total Power | KW | 70 |
| Operating power | % | 52-70 |
| Others | ||
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 4.5*1.6*2 |
| Net weight | Ton | 10 |
|
| الاسم التجاري: | ZI QIANG |
| رقم الطراز: | ZQ 80 |
| الـ MOQ: | 1 |
| السعر: | 60000 USD |
| شروط الدفع: | ر/ر |
| Attribute | Value |
|---|---|
| Trademark | DAWSON |
| Control System | PLC |
| Motor Power | 11/15 Kw |
| Compressed Air Capacity | 0.7M³/min |
| Warranty | 1 year |
| Automation Grade | Automatic |
| Plastic Materials | PP, HDPE, PE/PP |
| Plastic Processed | PP,PE |
| Total Power | 20KW |
| Injection Stroke | 200 Mm |
| Operation Mode | Automatic |
| Frequency | 50/60Hz |
| Station | 50mm |
| Electronic Rulers | Gefran |
| Injection Clamping Force | 1100 KN |
| Item | Unit | ZQ80 |
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 55 |
| Screw L/D | % | 22:1 |
| Injection weight | g | 314 |
| Heating power | KW | 20 |
| Number of barrel zone | 5+N | |
| Injection stroke | mm | 160 |
| Clamping System | ||
| Clamping force of injection | KN | 800 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 120 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |
| Mould | ||
| Max.Platen size(L*W) | mm | 800*400 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 230 |
| Hydraulic system | ||
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 22+22 |
| Dry cycle | S | 4 |
| Total Power | KW | 70 |
| Operating power | % | 52-70 |
| Others | ||
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 4.5*1.6*2 |
| Net weight | Ton | 10 |
