| الاسم التجاري: | Zi-Qiang |

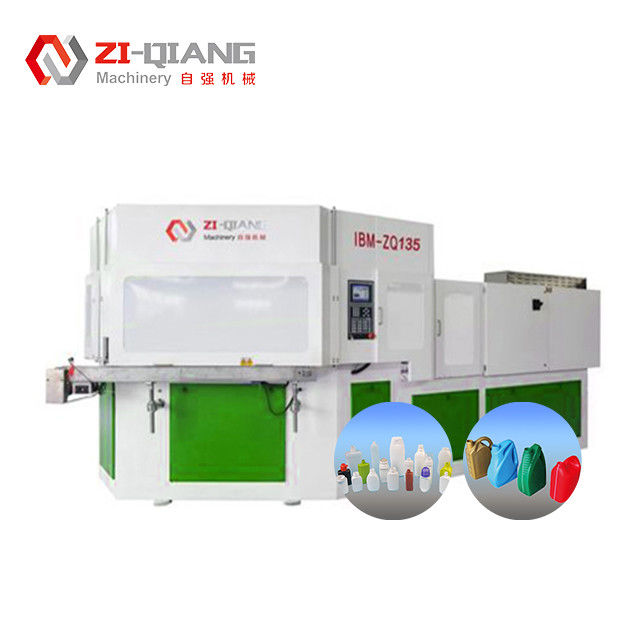

| رقم الطراز: | ZQ135 |
| الـ MOQ: | 1 |
| السعر: | 150000USD |
| شروط الدفع: | T/T |
| Item | Unit | Specification |
|---|---|---|
| Screw Diameter | mm | 70 |
| Screw L/D | % | 22:1 |
| Injection weight | g | 650 |
| Heating power | KW | 30 |
| Number of barrel zone | 6+N | |
| Injection stroke | mm | 200 |
| Item | Unit | Specification |
|---|---|---|
| Clamping force of injection | KN | 1350 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 200 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |
| Item | Unit | Specification |
|---|---|---|
| Max.Platen size(L*W) | mm | 1300*500 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 280 |
| Item | Unit | Specification |
|---|---|---|
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 37+37 |
| Dry cycle | S | 4 |
| Total Power | KW | 95 |
| Operating power | % | 52-70 |
| Item | Unit | Specification |
|---|---|---|
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 5.5*2*2.4 |
| Net weight | Ton | 18 |
|
